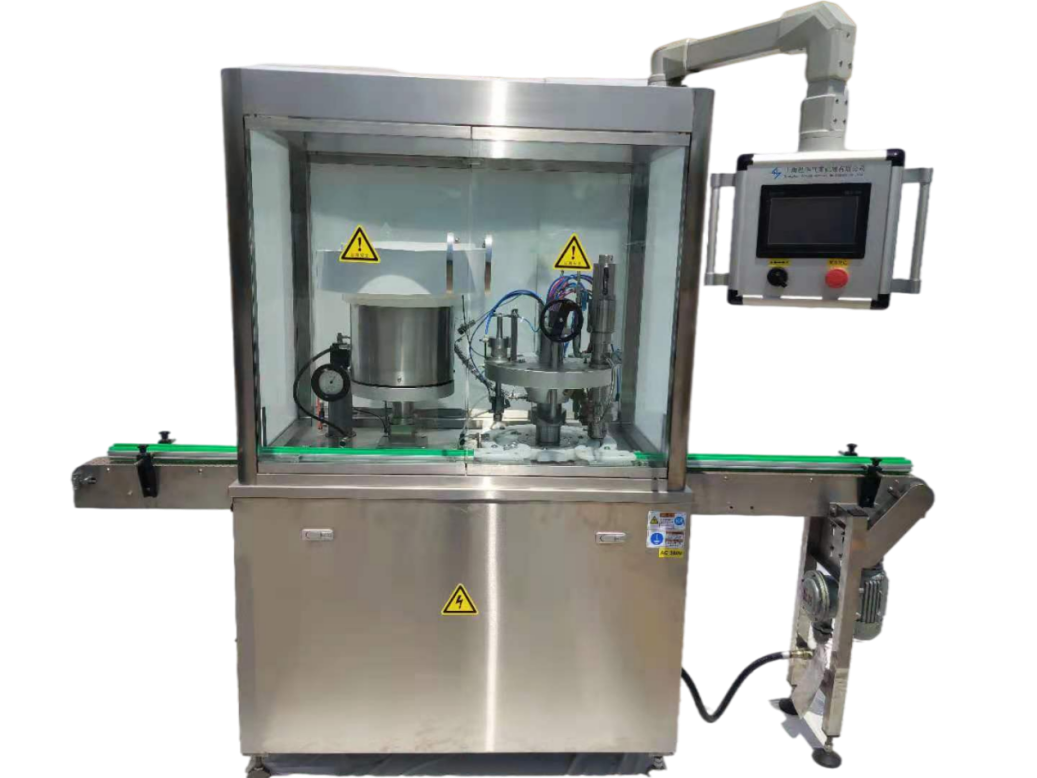

The equipment fully absorbs the concept of advanced European aerosol equipment. The equipment uses compressed air as the power source and is controlled by PLC computer logic. The seals and gas path control components used inside the equipment are all international well-known brands, with high reliability, durability and high production efficiency. The device can perform single-step work or close a logic system to work. Since the seals and gas path control components used inside the equipment are all internationally renowned brands, with high reliability, durability and high production efficiency. This machine is suitable for filling, valve adding, sealing and inflation of aerosol products with 20mm valve. The operation is simple, ordinary assembly line operators can control the machine after basic training, the operation is safe and reliable, and the designed service life is 15-20 years.

technical parameter

Air consumption : 1.2 m³/min

Power supply: 380V/50Hz/1.5KW

Adapt to the valve (mm): 20

Diameter of aerosol can (mm): 22-29

Height of aerosol tank (mm): 35-100

Content filling volume (ml): 7, 15, 25, 35

Filling accuracy (%) ±1

Filling volume of propellant (ml): 7, 15, 25

Filling accuracy (%): ±1

Production speed (PCS/min):  25-30
