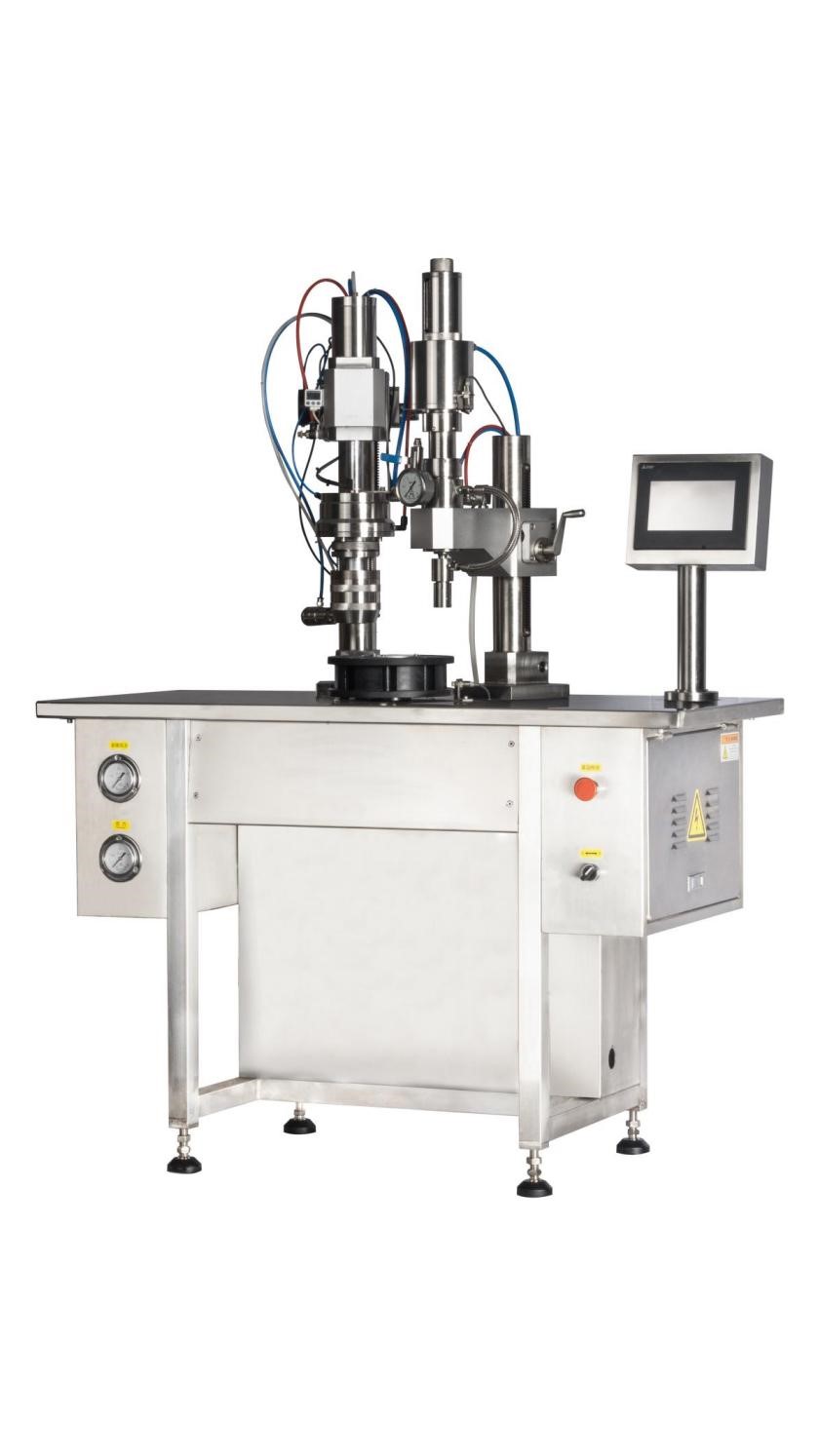

Binary packaging machine sealing/filling machine

The equipment is mainly used for small metering and packaging products in the hair dye cream and anti-wolf spray industry, which is easy to carry and control usage, reduce waste, and at the same time reduce transportation costs. A 20mm binary valve and 28mm diameter aluminum can are used for inflatable sealing + filling. The operation method is to put the aerosol can with the binary valve into the turntable and there is an induction switch at the bottom of the turntable to sense the trigger signal, then the turntable will rotate one Station, and then continue to put in, the turntable continues to rotate, until the bottom of the filling and sealing machine head is sensed, the sealing head will first press the tank - gland - lift cap - fill - gland - seal --After completing a sealing cycle in the original position, turn to the filling head again for filling. Then it is sent to the safe area via the turntable, and the binary aerosol product is manually taken out.

technical parameter

Applicable valve (mm): 20

Filling volume (ml): 50

Adapt to tank shape (mm): 25mm-30mm

Maximum preset air pressure (Mpa): 0.6

Production capacity (PCS/min): 12-15

Product video
Information PDF download
