Automatic capping machine

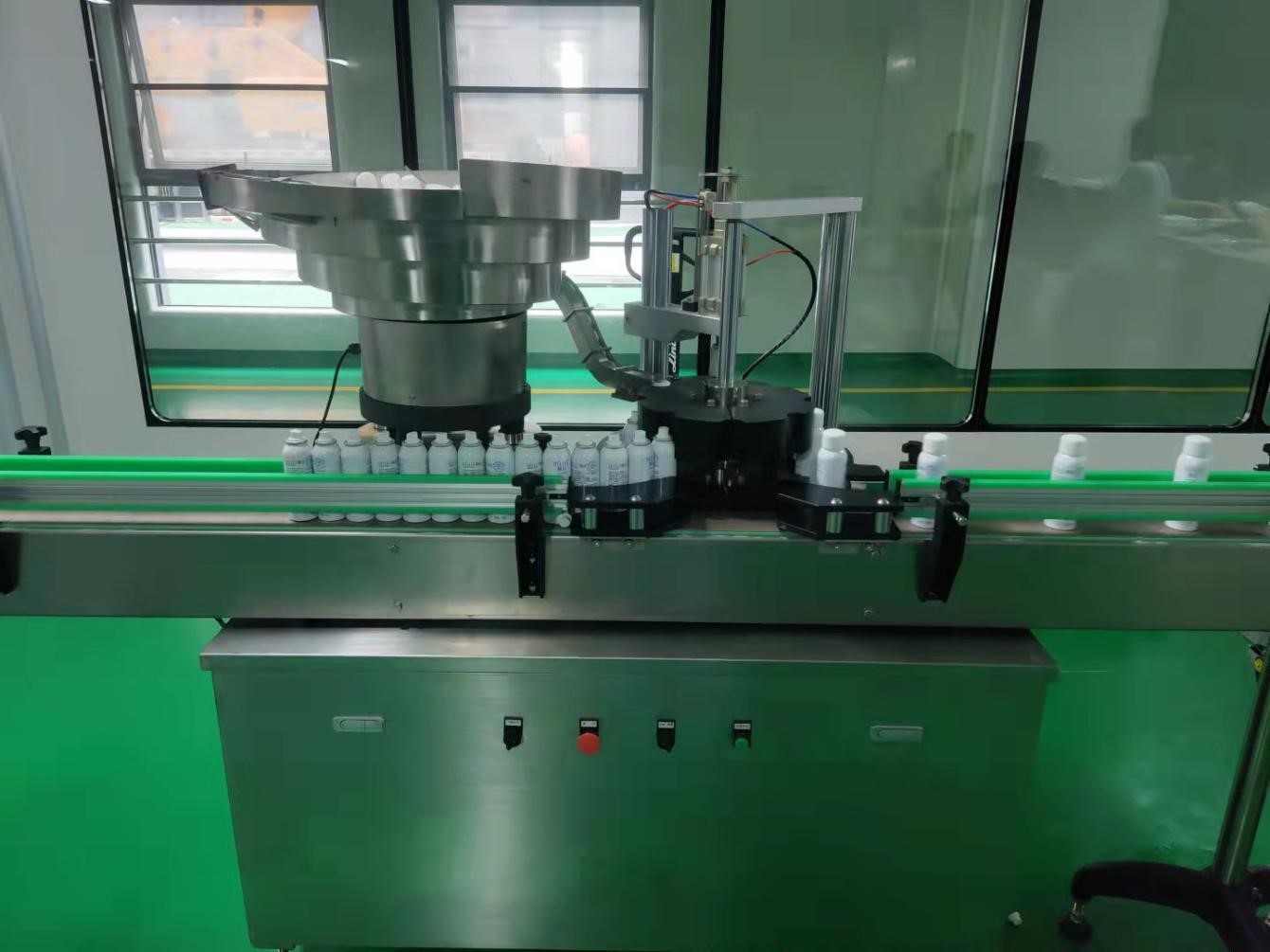

Through the vibrating hopper, the machine arranges the caps in a consistent arrangement, and feeds the cap into the turntable of the cap machine. When the aerosol can enters the turntable, the cap also enters at the same time, and then rotates to the gland cylinder by the turntable. , Press in. After the pressing is completed, the turntable will send the aerosol product to the conveyor belt for the next process.

technical parameter

Air consumption: 1.2 m³/ min

Diameter of aerosol can (mm): 35-66

Height of aerosol can (mm): 90-300

Production capacity (PCS/min): 60

Product video
Information PDF download
