One yuan filling, adding valve, sealing machine (explosion-proof type)

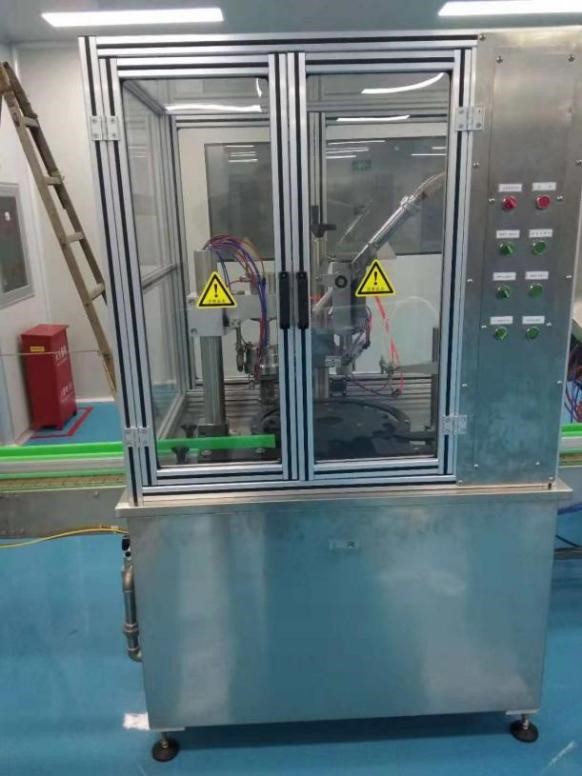

Filling and valve sealing machine (including unscramble bottle): This equipment fully absorbs the concept of advanced aerosol equipment in Europe and North America. The equipment adopts compressed air as the power source and is controlled by air control valve logic. The seals and gas path control components used inside the equipment are all international well-known brands, with high reliability, durability and high production efficiency. This machine is suitable for filling, valve adding, detecting valve and sealing of one yuan aerosol products. The operation is simple, ordinary assembly line operators can control the machine after basic training, the operation is safe and reliable, and the designed service life is 15-20 years.

technical parameter

Air consumption : 3.0 m³/min(0.8Mpa pressure)

Adapt to the valve: 1 "

Diameter of aerosol can (mm): 35-66

Aerosol tank height(mm):   80-315

Filling volume (ml): 150, 300, 500,

Production capacity (PCS/min): 40-60
